BETA DRYWALL SYSTEM 76MM

The 76mm BETA Drywall Partition System is a light-duty, non-load-bearing partitioning solution ideal for general office and commercial interiors. It uses a 51mm stud and 52mm steel track system to support 12mm + 15 mm gypsum boards, offering a clean, cost-effective space division option with minimal footprint. The system supports a wide range of glazing and door options to suit modern office layouts.

Material Composition & Finishes

Studs: 51mm steel studs
Tracks: 52mm steel tracks
Boards: 12mm gypsum board (standard + moisture-resistant finish)
Jointing: Fibre mesh tape and CAPCO jointing compound
Accessories (optional):
Ceiling & Wall Channel

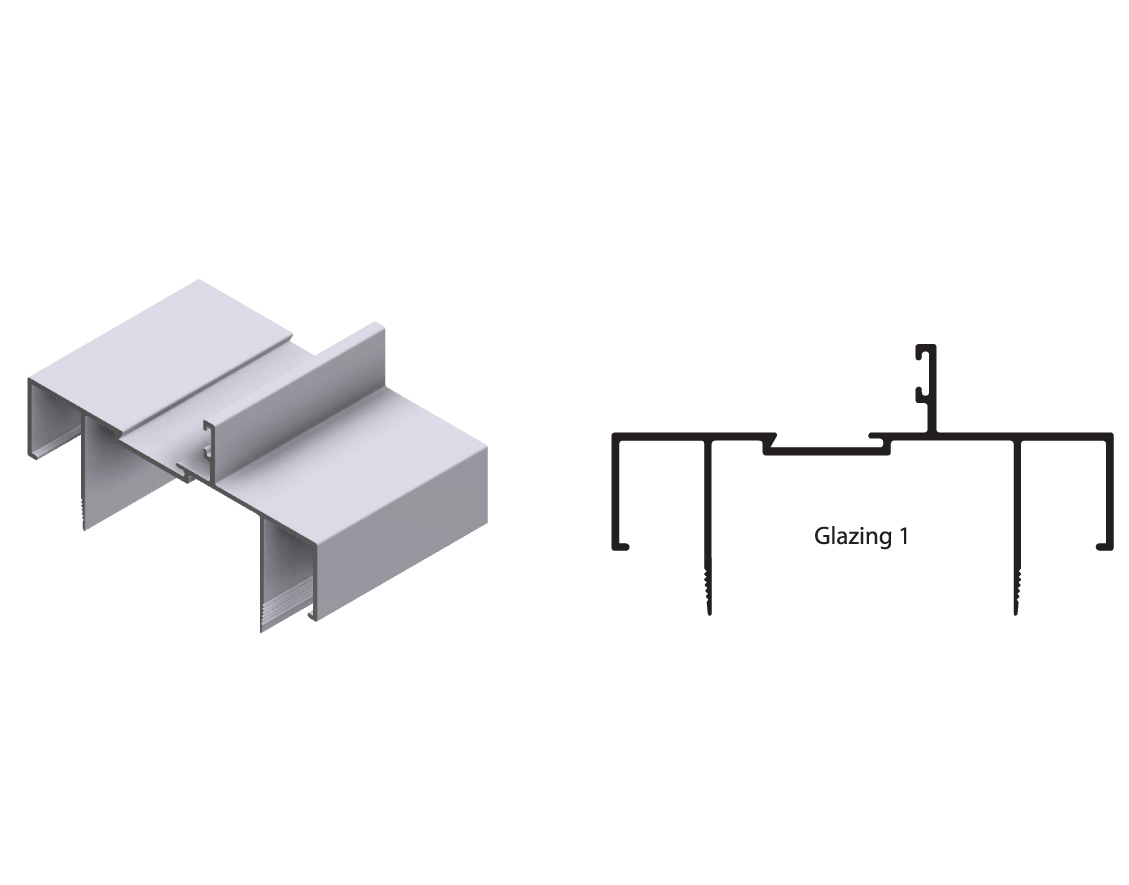

Glazing 1

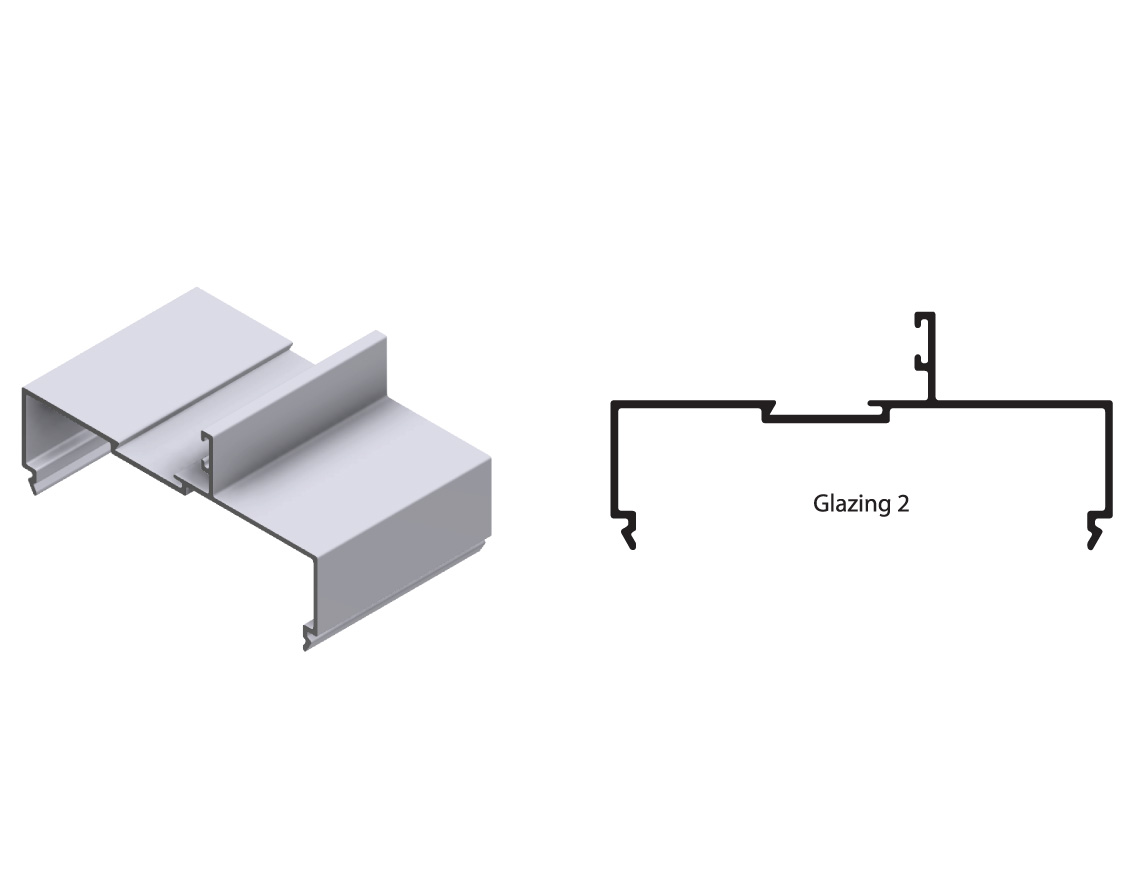

Glazing 2

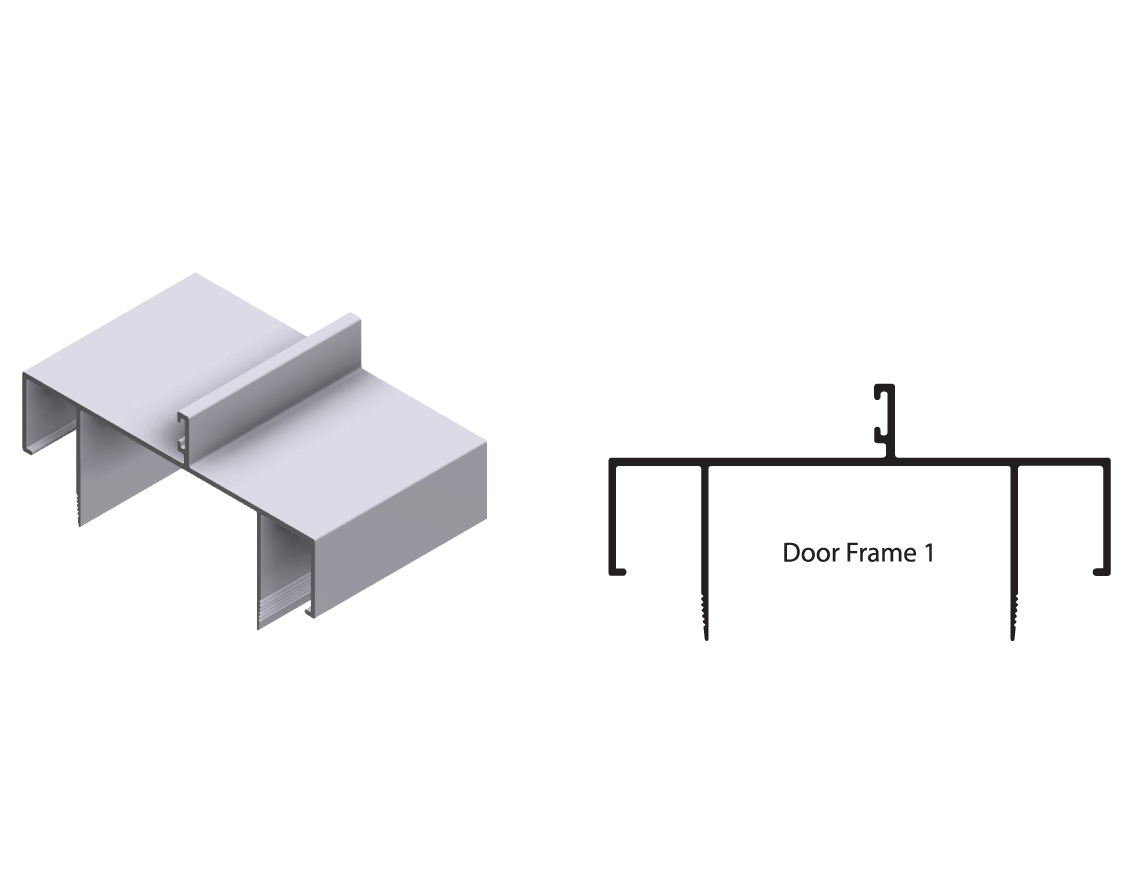

Door frame 1

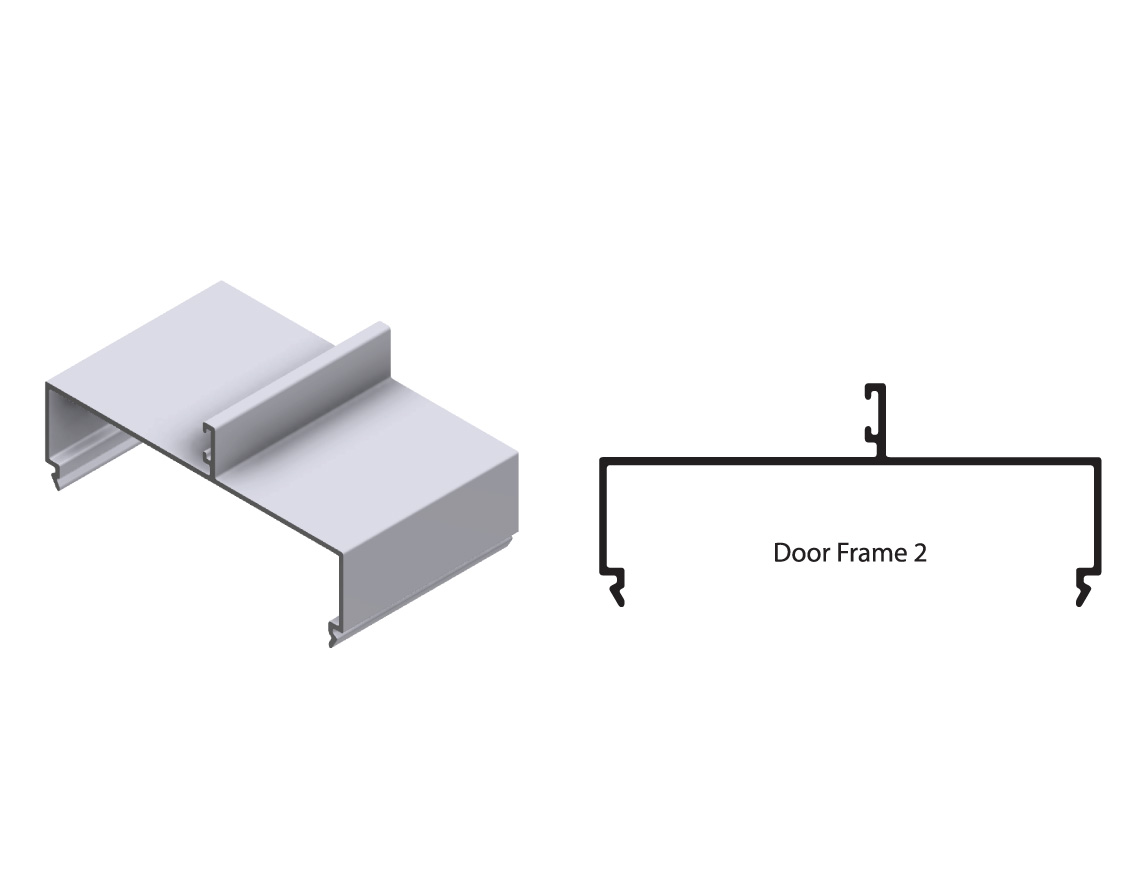

Door frame 2

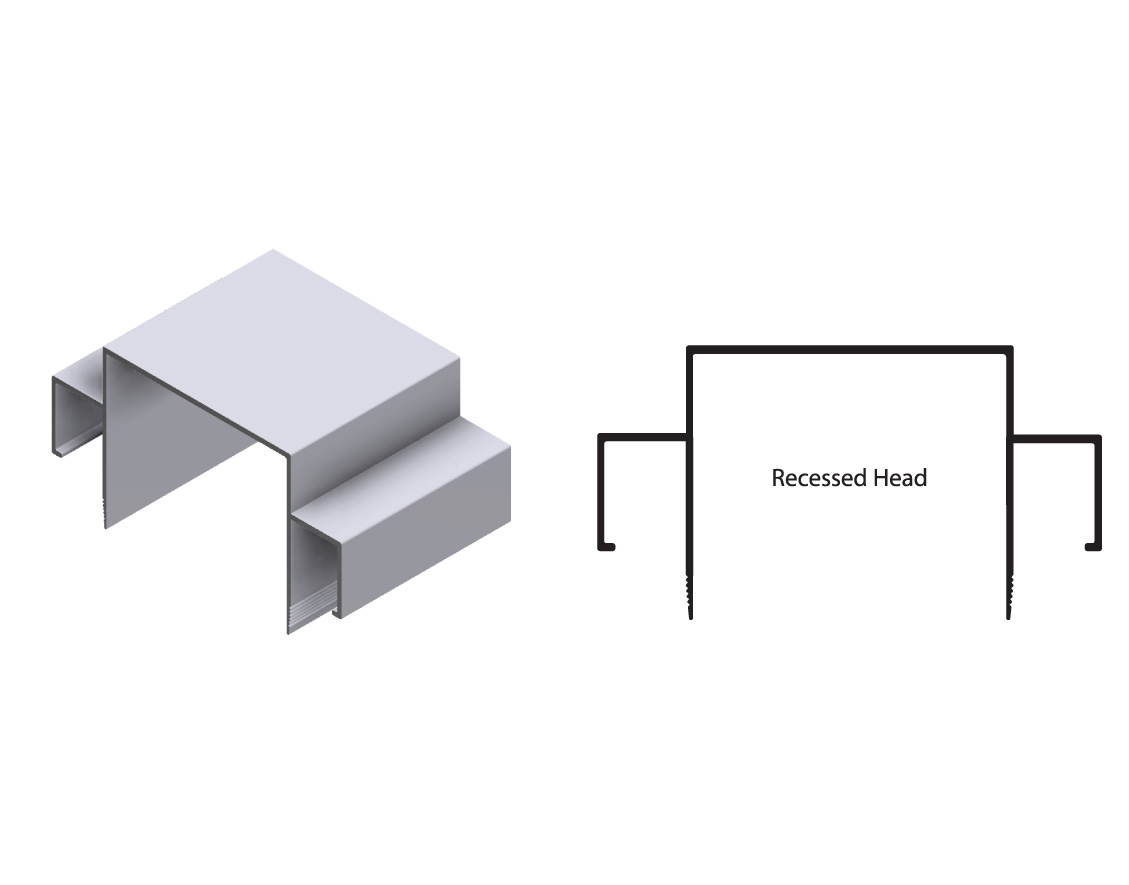

Recessed Head

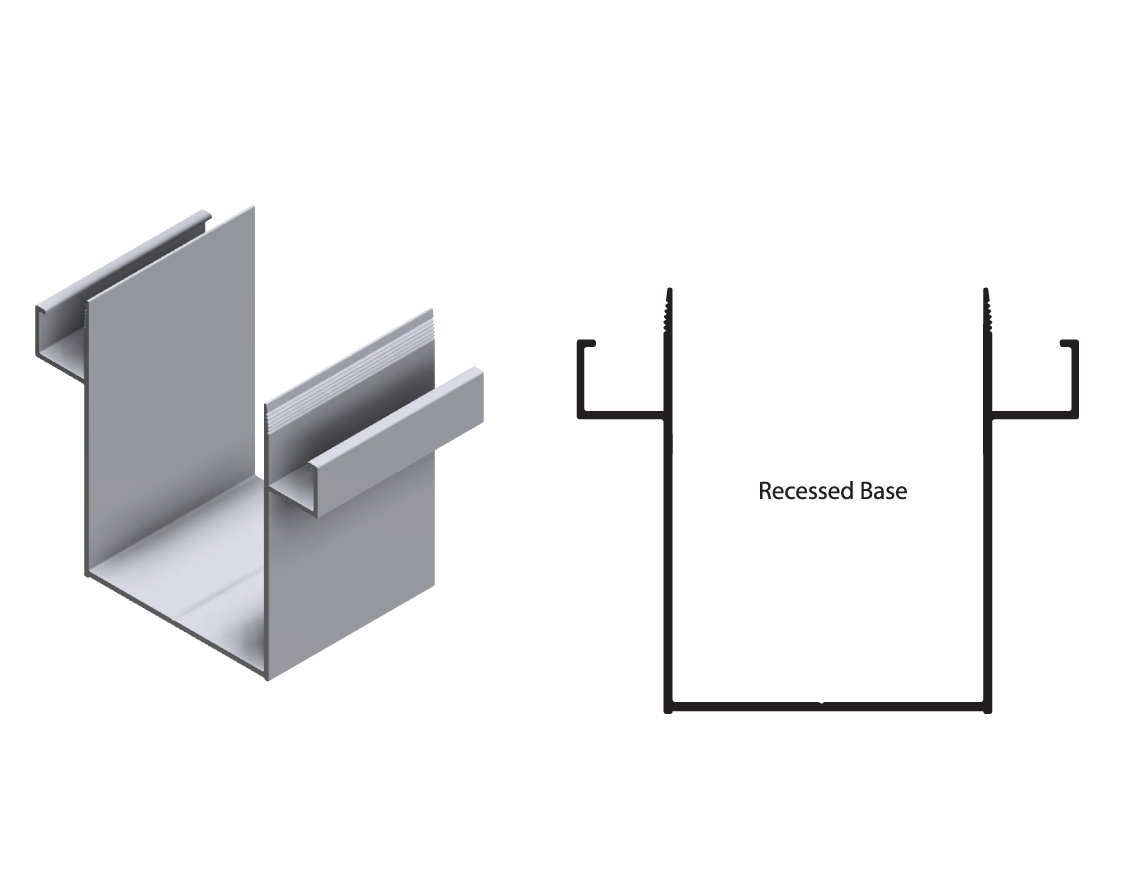

Recessed Base
Termination 2

Key Benefits

Clean, professional look with flush finishes and minimal detailing
Compatible with standard 12mm gypsum boards + moisture-resistant boards
Simple and fast installation using modular aluminium components

Design & Customisation options

Door integration:
Aluminium or timber framed doors

Available Sizes & Dimensions

Wall Thickness: 76mm total
Stud Width: 51mm
Track Width: 52mm
Stud Spacing: 600mm centres
Board Thickness: 12mm gypsum
Skirting Height (optional): Aluminium skirting – 75mm & 100 mm
Max height: 4.2 m
