Beta Executive Drywall System 90mm

The BETA Executive Drywall System 90mm offers a fully glazed partitioning solution designed for premium commercial interiors that demand superior design and structural robustness. With wider 98mm framing sections for enhanced visual impact and compatibility with thicker drywall systems, this system is perfect for high-end office environments such as corporate boardrooms and executive suites. It allows for both inward and outward door orientations and includes specialised fittings for precise installation and long-term performance.

Material Composition & Finishes

Aluminium Sections: Natural anodised or epoxy powder coated
Glazing Beads: Sloping/square aluminium with integrated PVC glazing gaskets
Glass: 6.4mm or 8.4mm intruder-proof safety glass (supplied by others)
Hinges & Fittings: Aluminium sinkless hinges, satin chrome hardware, cylinder lockset

Key Benefits

High-impact executive finish with thicker 90mm profile for a bolder look
Seamlessly integrates with BETA 90mm Drywall System
Optional inward or outward door opening functionality
Durable aluminium frame with spigots and glazing gaskets for structural integrity and acoustic value
Fully compatible with corner configurations (90° and 135° options)
Ideal for premium commercial, legal, and boardroom applications

Available Sizes & Dimensions

Partition Depth: 90mm
Ceiling Height Glazing Sections:

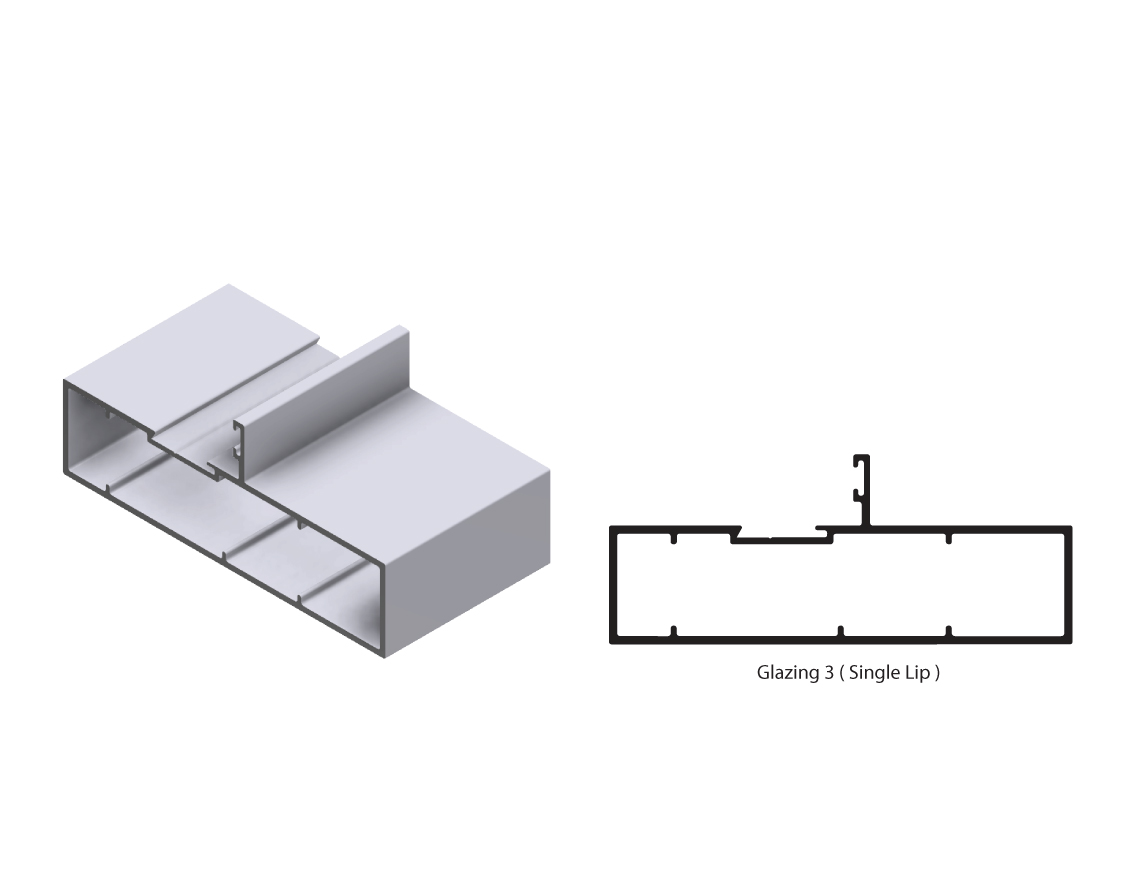

G3: Single-sided glazing for ceilings and walls
G4: Double-sided glazing for intermediate mullions and door frames
G5: Single-sided glazing (98 x 50mm) for floor application
Corner Posts:

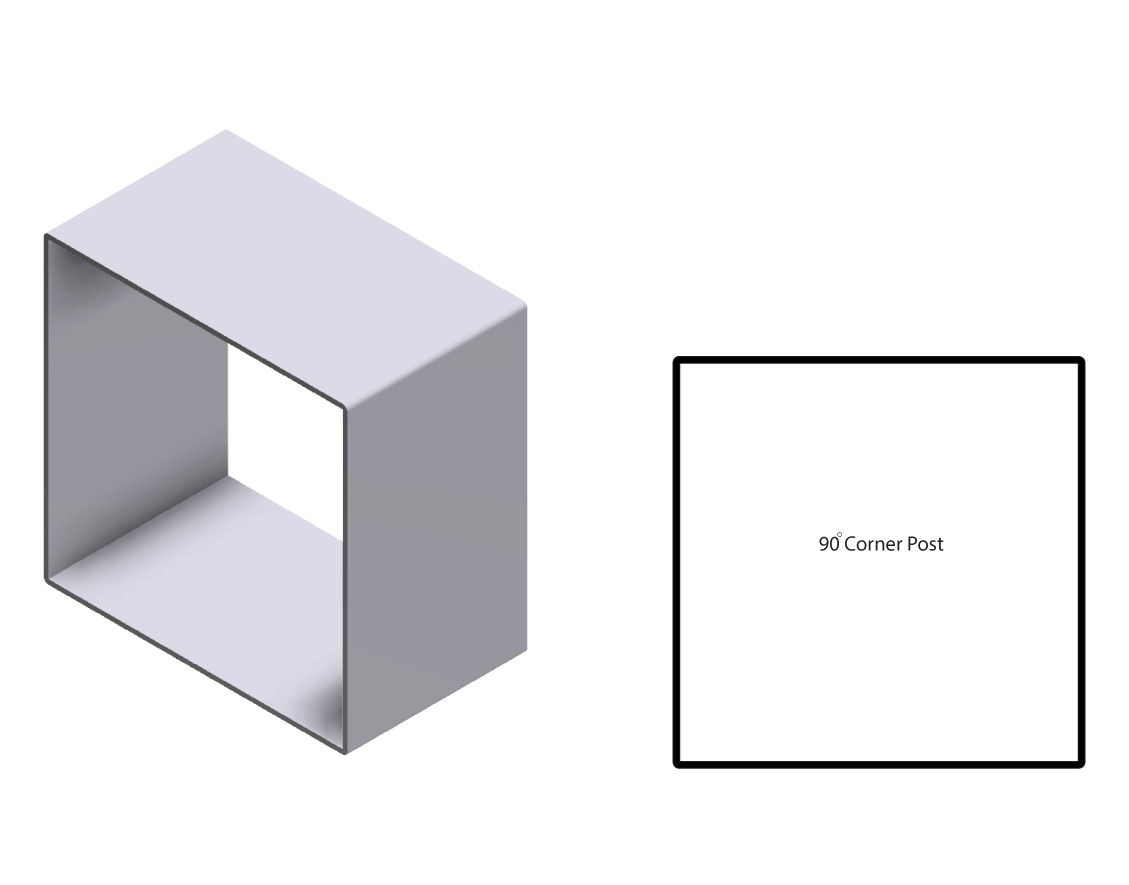

90° Corner: 98 x 98mm

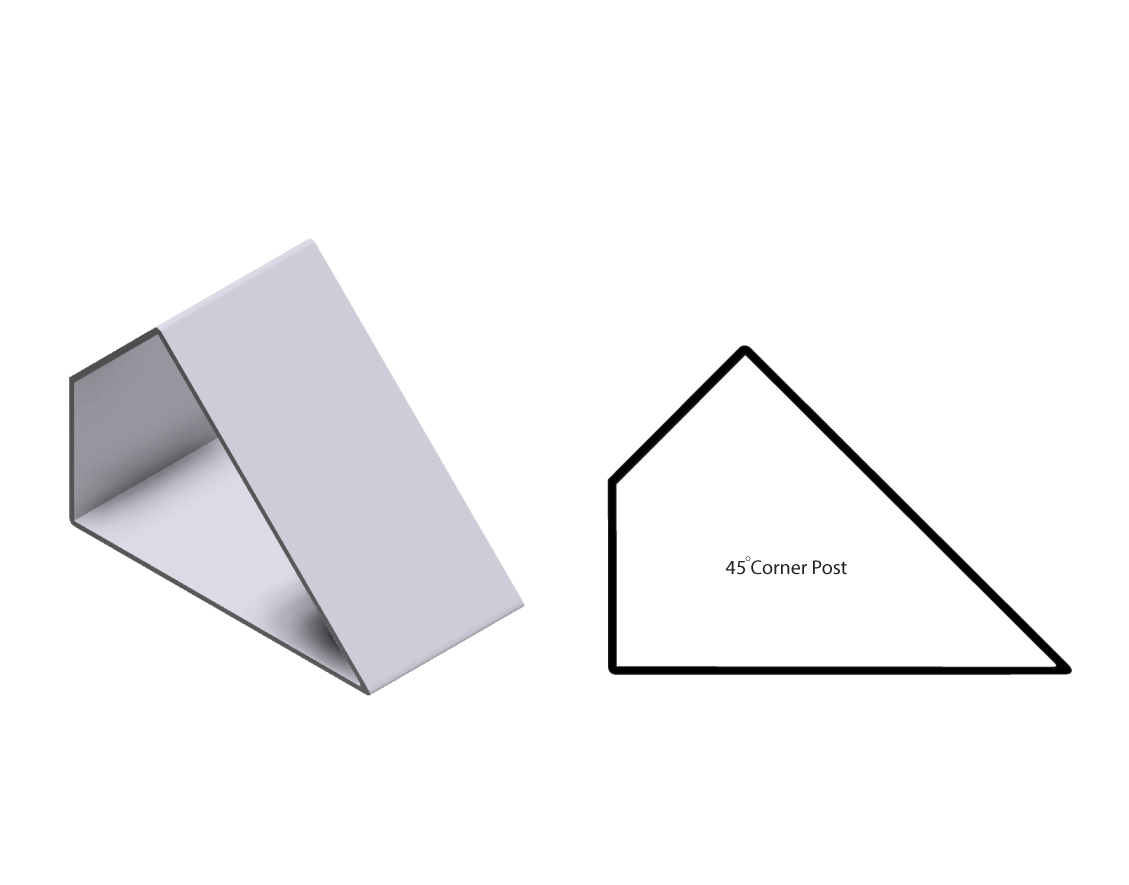

135° Corner: 98mm angled (45°)
