SIGMA Ceiling Transition 15, 20 & 30 with LED Light

A range of aluminium transition trims for clean junctions between same-level gypsum flush plastered ceilings and exposed tee suspended ceilings. The SIGMA Ceiling Transition series (15, 20, and 30 with LED) ensures an architecturally refined interface, with optional integrated lighting in the 30mm version.

COPYWRITE - REGISTERED DESIGN

Material Composition & Finishes

Aluminium extrusion
Satin white epoxy-coated finish – smooth
Key Benefits

Provides a seamless transition between plasterboard and tile ceiling types at the same level
Available in 15mm, 20mm, and 30mm
SIGMA 30 variant includes integrated lighting capability
Factory-coated surface ensures clean lines and durability
Available Sizes & Dimensions

SIGMA Ceiling Transition 15: 15mm
SIGMA Ceiling Transition 20: 20mm

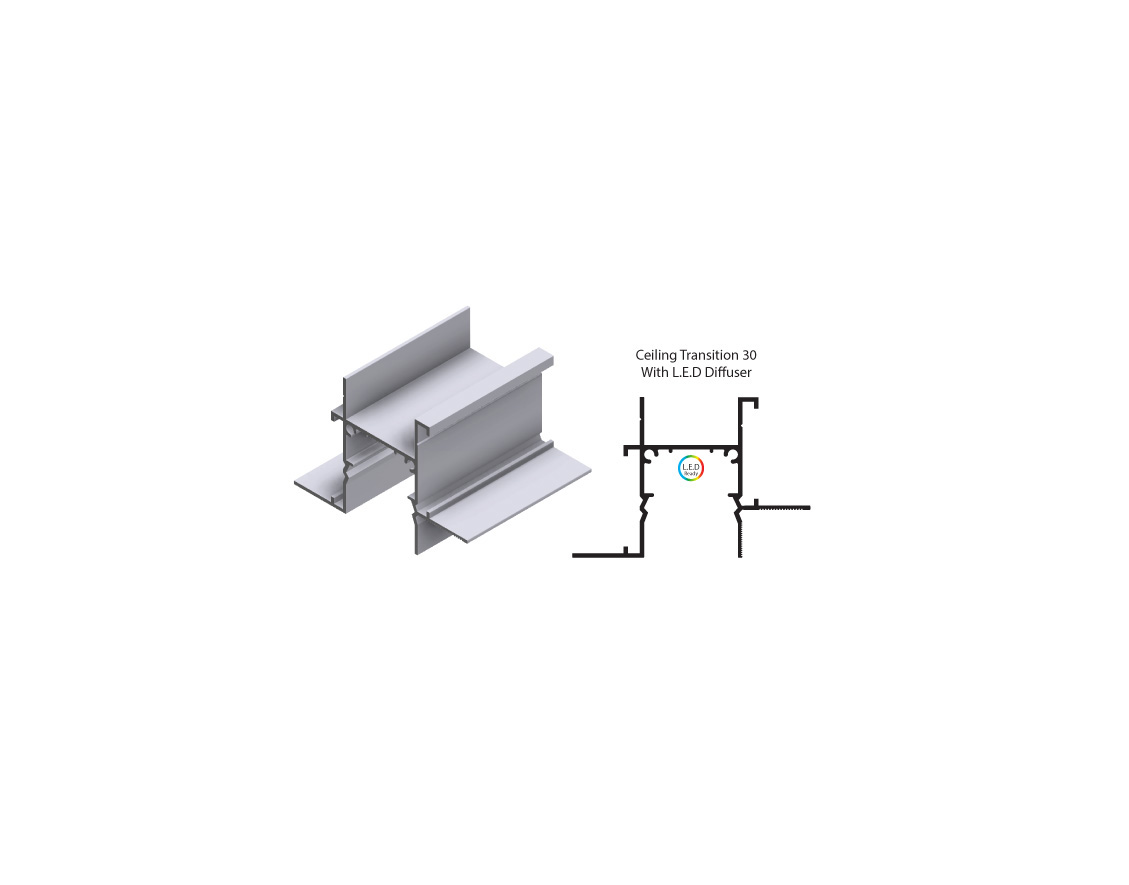

SIGMA Ceiling Transition 30: 30mm with lighting option

DOWNLOADS

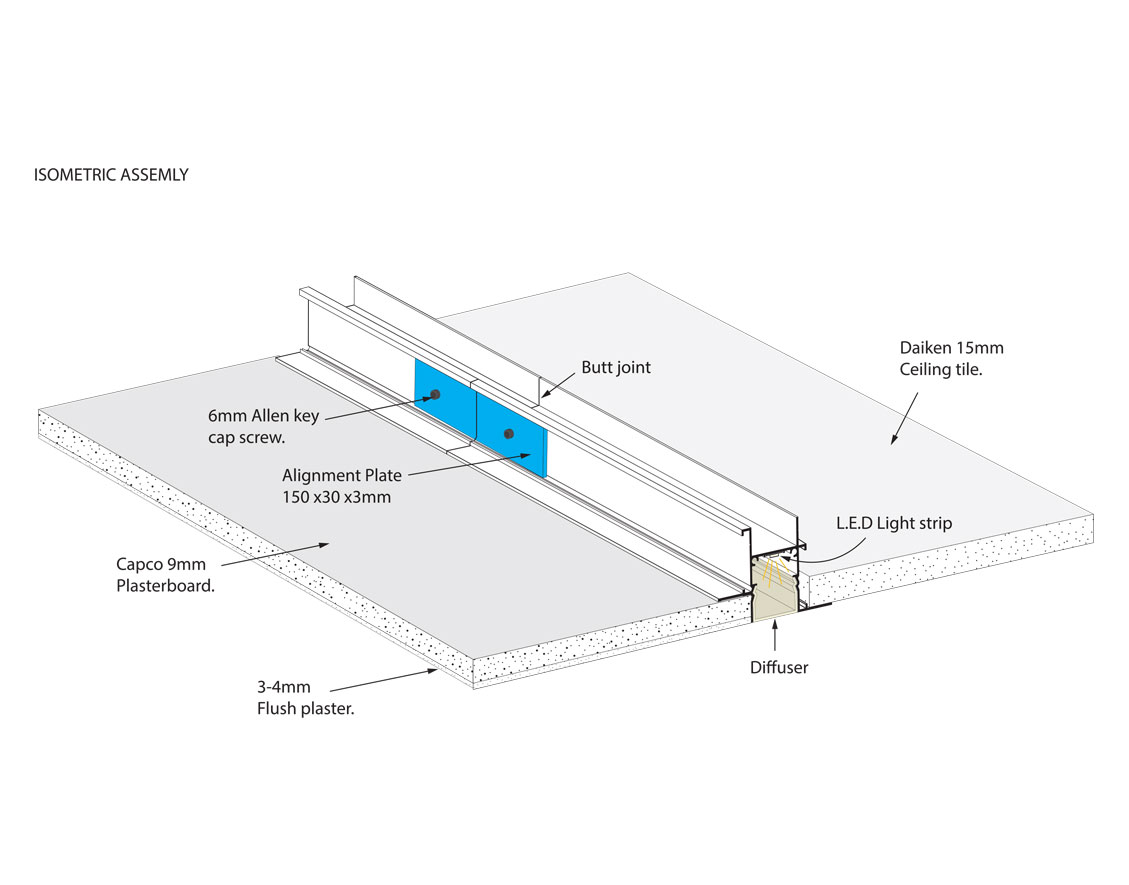

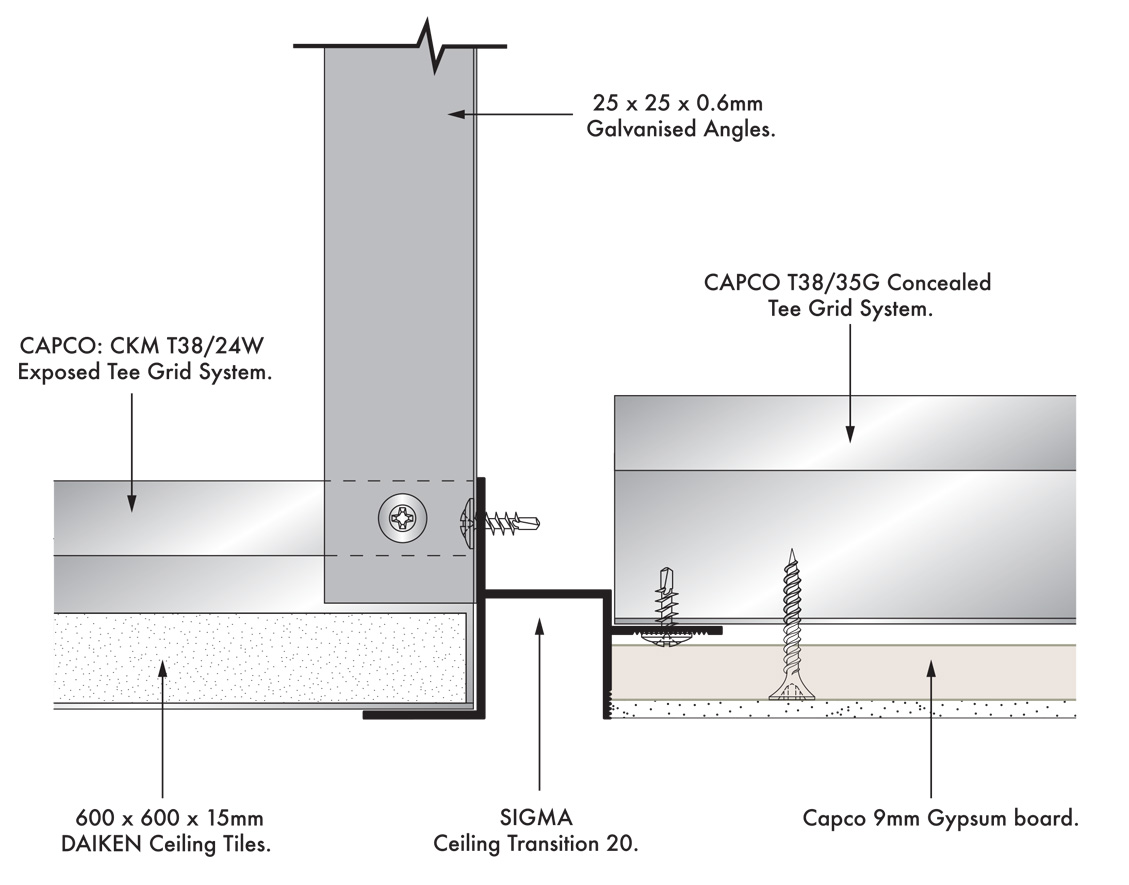

SPEC SHEET (ASSEMBLY DRAWING)

SIGMA-Ceiling-Transition-15

SIGMA-Ceiling-Transition-20

SIGMA-Ceiling-Transition-30

DWG

Ceiling-Transition-15-1

Ceiling-Transition-20-1

Ceiling-Transition-30-1

QS SPECIFICATION

Ceiling-Transition-Written-Spec-1
